CBY Horizontal cooling water Pump

Overview

CBY series rigid type single stage single-suction marine horizontal centrifugal pump is a new model of highly efficient and energy saving product designed on the basis of para-

meters and structure of Mode IS centrifugal pump in compliance with national standards.

Model Explanation CBY 80-160A(B)

CBY- single-stage single-suction horizontal centrifugal Pump

80-Nominal diameters of pump inlet(mm)

160-Nominal outer diameter of impeller(mm)

A(B)—Impeller processed with 1（2）time cutting

Characteristics

1、This model is of horizontal type with compact structure integrating machine and pump into one body, characterized by elegant appearance, compact structure, stable running,low noise and no vibration in running which saves invesment in infrastructure construction and improves application environment.

2、Oil seal is made of corrosion resistant hard alloy.

3、Being leakage resistant,it ensures operation space to be clean and tidy.

Applications

1、CBY series horizontal ship pump is used for water supply and drainage of ships.

2、CBY series horizontal ship pump is used for conveying clear water and other kinds of liquid which physical property is similar to clear water, with medium temperature above 80℃, suitable for industrial and urban water supply and rainage,pressure boost water supply for high hildings,sprinkle irrigation for gardens, pressure boost for fire control, long-distance water conveyance,heating,pressure boost for cycling cold and warm water in bathrooms and supporting equipment.

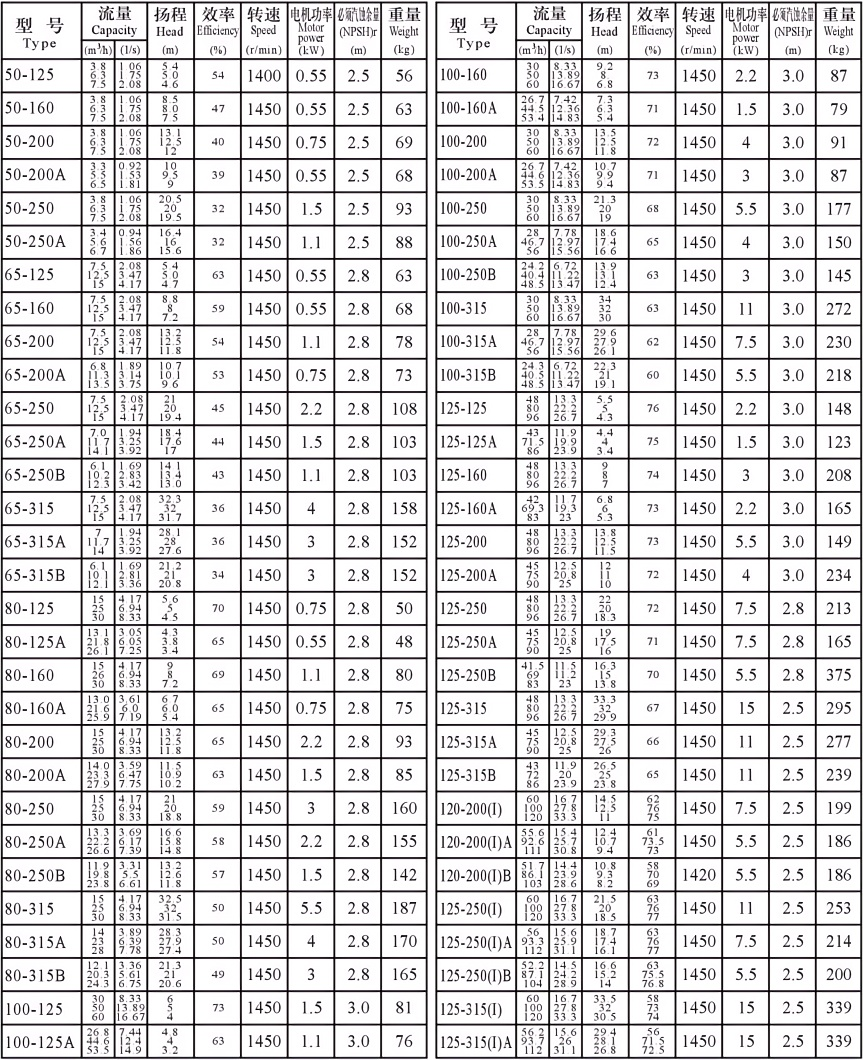

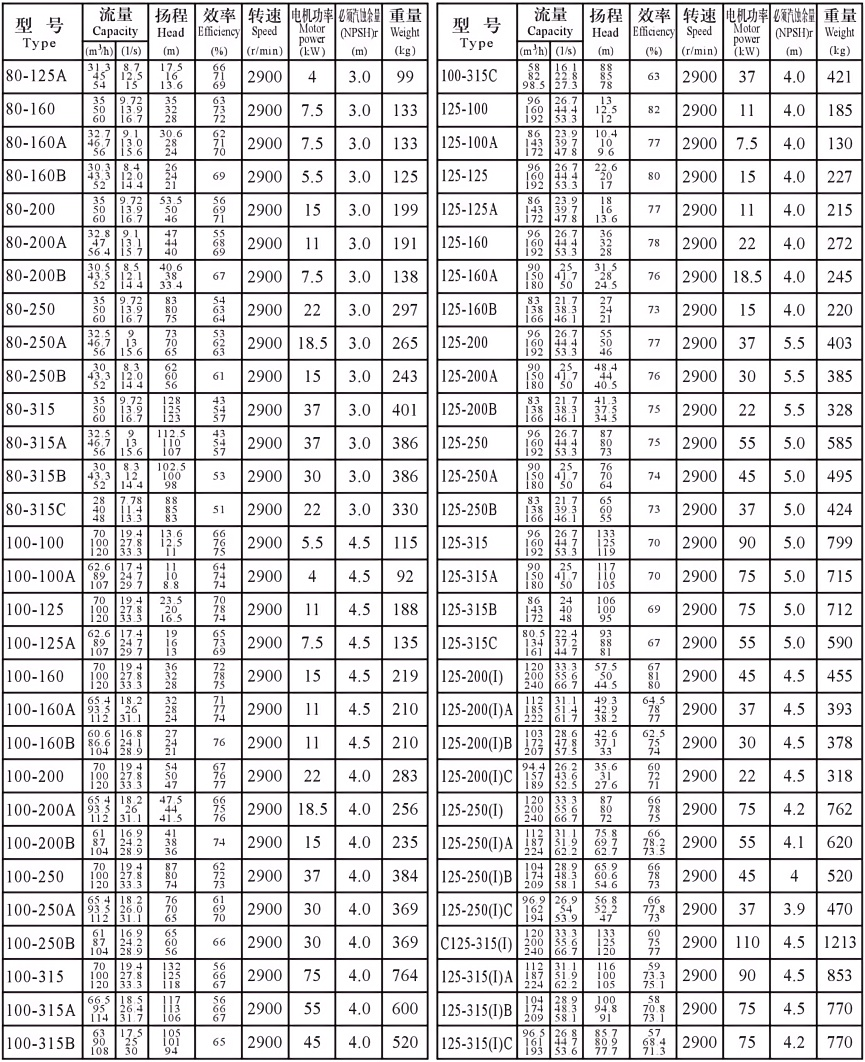

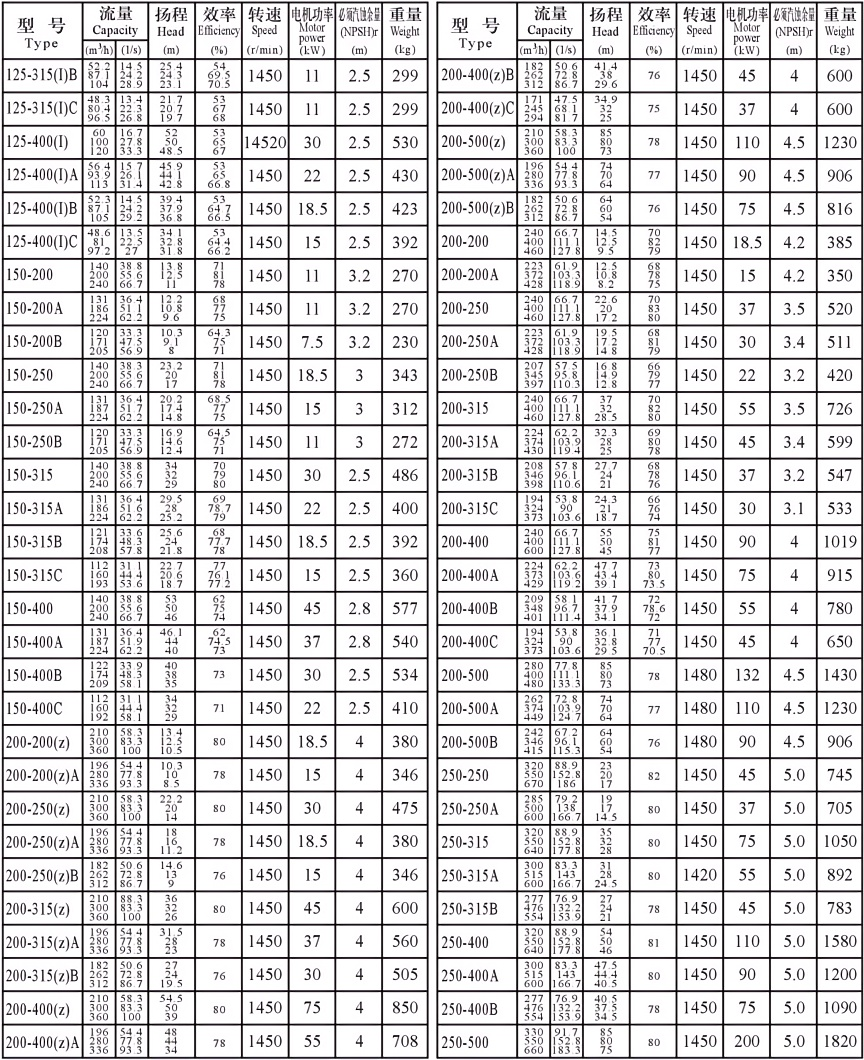

 Performance Parameter

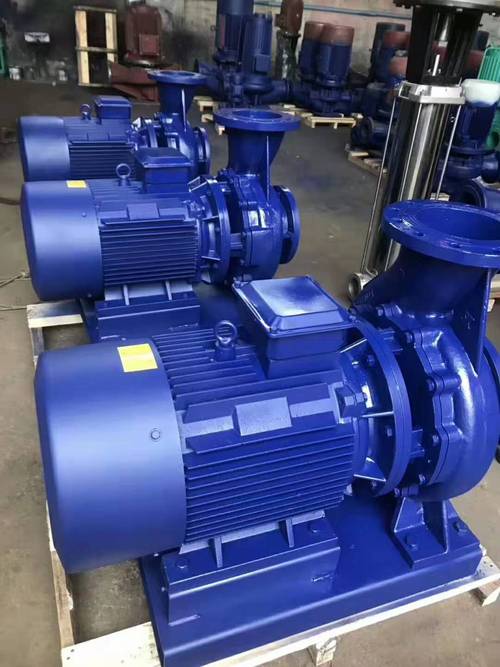

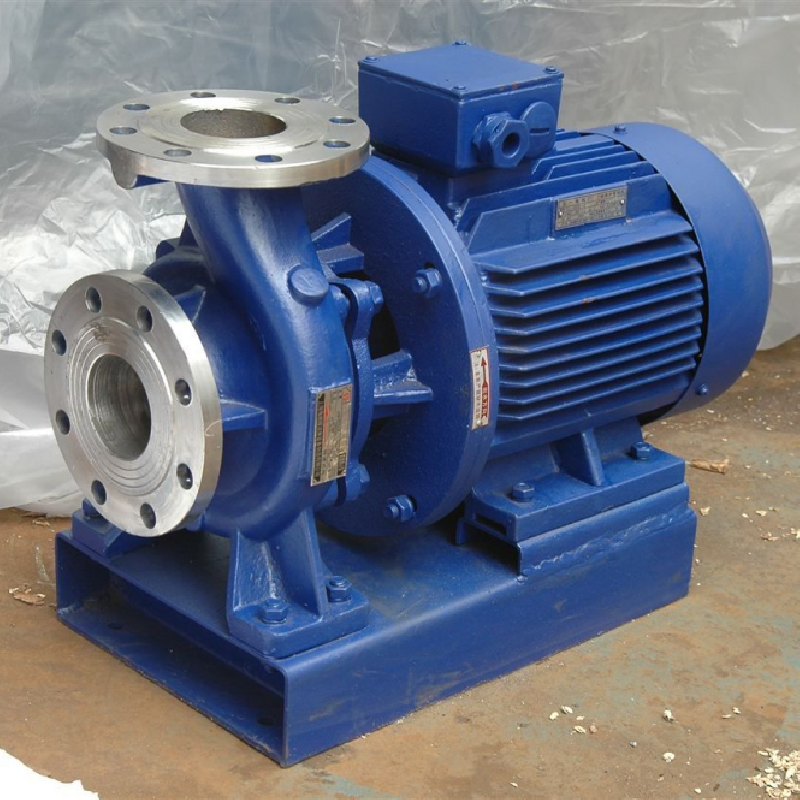

The picture of pump
